Solar Water Pump Inverter
Solar pump system, consisting of solar array, solar pump inverter, AC water pump and water tank, uses solar cell as power supply to directly take water from deep wells, rivers, lakes and other water sources through the water pump.Solar pump system, consisting of solar array, solar pump inverter, AC water pump and water tank, uses solar cell as power supply to directly take water from deep wells, rivers, lakes and other water sources through the water pump.
The solar array absorbs solar radiation and converts it into electric energy to provide power supply for the whole system. The solar pump inverter converts the DC output by the solar array into AC and drives the water pump; in addition, it adjusts the output voltage and frequency according to the sunshine intensity in real time to realize maximum power point tracking and to maximize the use of solar energy. When the sunshine intensity is low, the solar pump system can switch to grid power for complementary power supply.
System feature
The system automatically starts in the morning and stops in the evening. It can run perfectly whenever there is sunshine, with no need of back-up battery.
Applicable to and suits all applications requiring water pumps.
Compatible with all types of solar panels and AC pumps (such as self-priming pump, submersible pump, deep-well pump and surface pump).
Maximum operating ambient temperature 60°C
Remote monitoring for real time operation status and switching on/off by GPRS.
Good performance even in cloudy weather.
In the long run, the return on investment is much higher than diesel generators.
Equipped with perfect protection, requires no man to be on duty, runs fully automatically.
18 months warranty for the whole system, 10 years warranty for solar panel.
The solar pump system is a presentation of low-carbon, energy-saving and environmental protection. It can obviously improve the living standard of people in areas lacking water and electricity. Therefore, it has broad market prospect and huge social value
Application
Solar water pump system is mainly used for daily water supply, agricultural and forestry irrigation, desert control, livestock drinking water, sewage treatment, scenic fountain and swimming pool, etc.

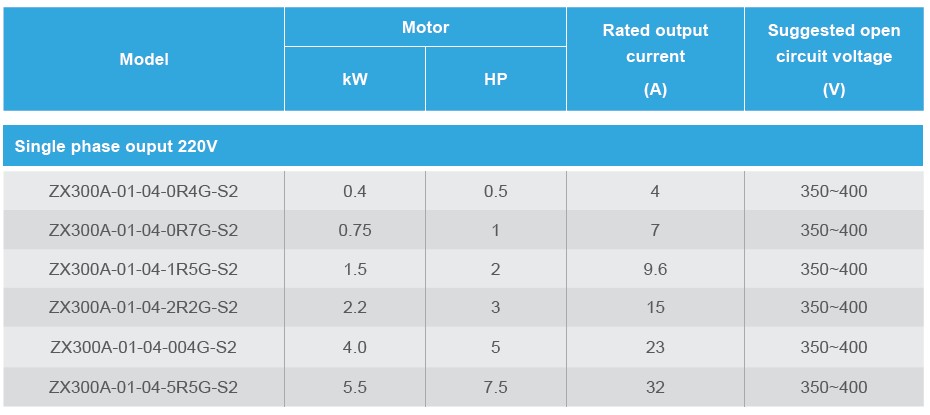

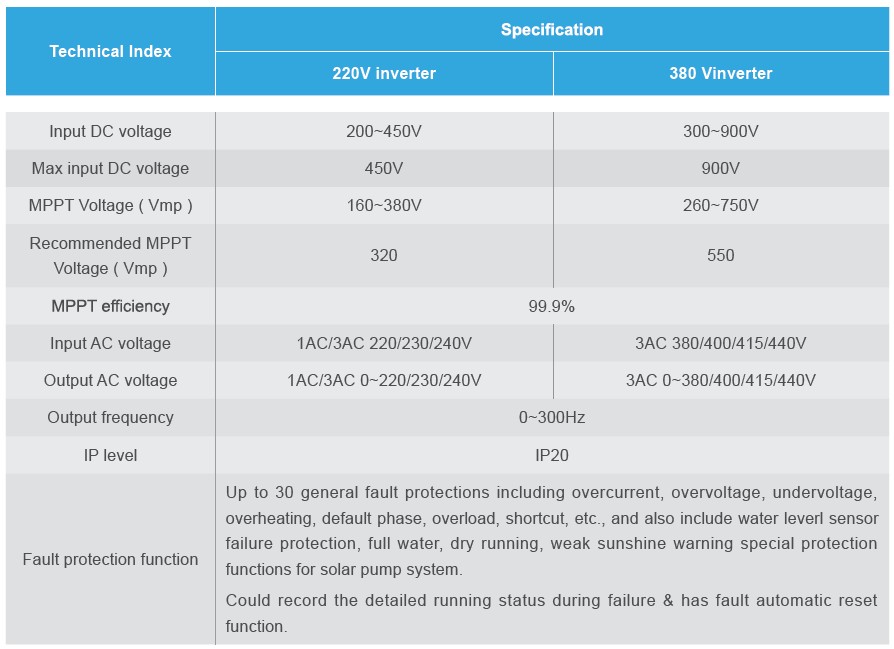

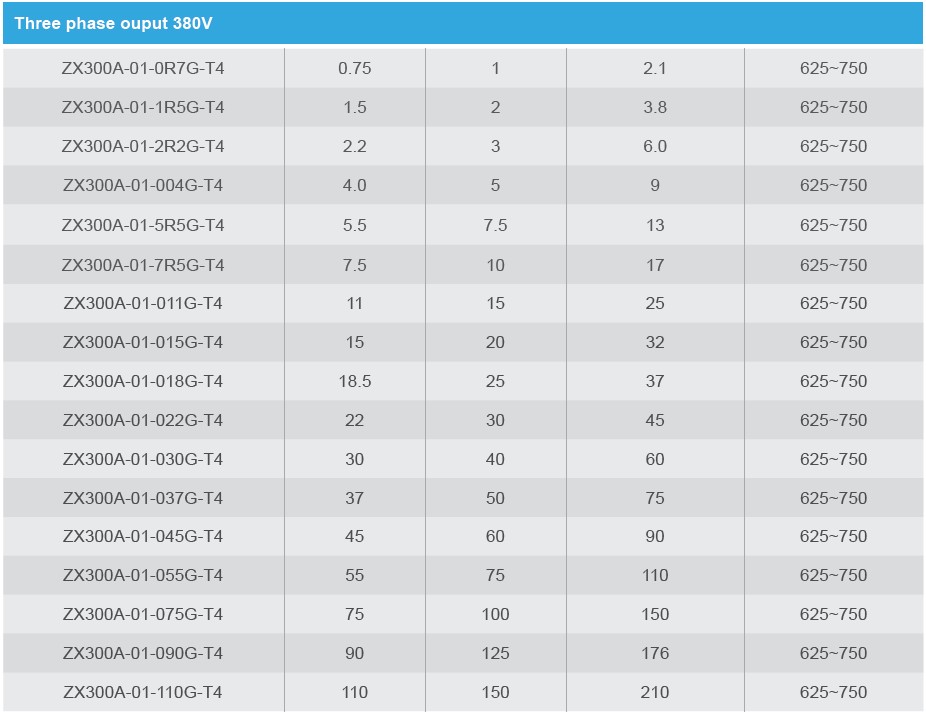

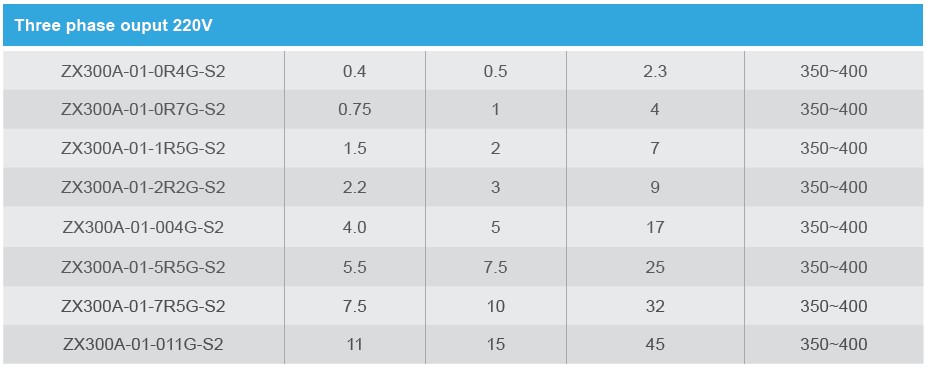

ZX300A-01 Series
ZX300A-01 series solar pump inverter adopts MPPT (Maximum Power Point Tracking) and excellent motor drive technology to maximize the power output from solar
panels. ZX300A-01 inverters are compatible with both AC and DC input, and the AC output can be used for various kinds of normal AC pumps. When the solar power is not available, or the sunshine is not strong enough to drive the pump, the inverter could be automatically switched to single phase or three phase AC input power, such as generator, grid power.
ZX300A-01 inverters are equipped with overall protection function (self-checking functions for dry running, weak sunshine, full water level, etc.), motor soft start and speed control functions, with perfect function, easy operation and installation.
ZX300A-01 inverters can also support remote monitoring and control function, which can monitor all operation data and fault information of the inverters.
Product feature
Flexibility
Suitable for all kinds of pumps, including single phase 220V pump
Compatible with all popular solar panels
Support AC input, could switch to grid power supply to make system work 24 hours
Smartness
Built-in MPPT technology with up to 99% efficiency
With water level detection function, automatically regulate the pump flow to provent dry running, full water level, etc.
Self-adaptation to the motor’s power rating
High Cost-effectiveness
Plug-and-play system design, no need to set any parameter
Wide range of input voltage
No need battery, suitable for all kinds of applications
Easy installation and effortless maintenance
Reliability
10-year market proven experience of leading motor and pump drive technology
Soft start feature to prevent water hammer and increase system life
Built-in overvoltage, overload, undervoltage and weak sunshine protection
Remote Monitoring
Standard RS485 interface, support to remote monitor the system with MICNO software on PC
Optional GPRS module for remote monitoring
Spots value of solar pump parameters monitoring available from anywhere
Support the lookup of the history parameters of solar pump system
